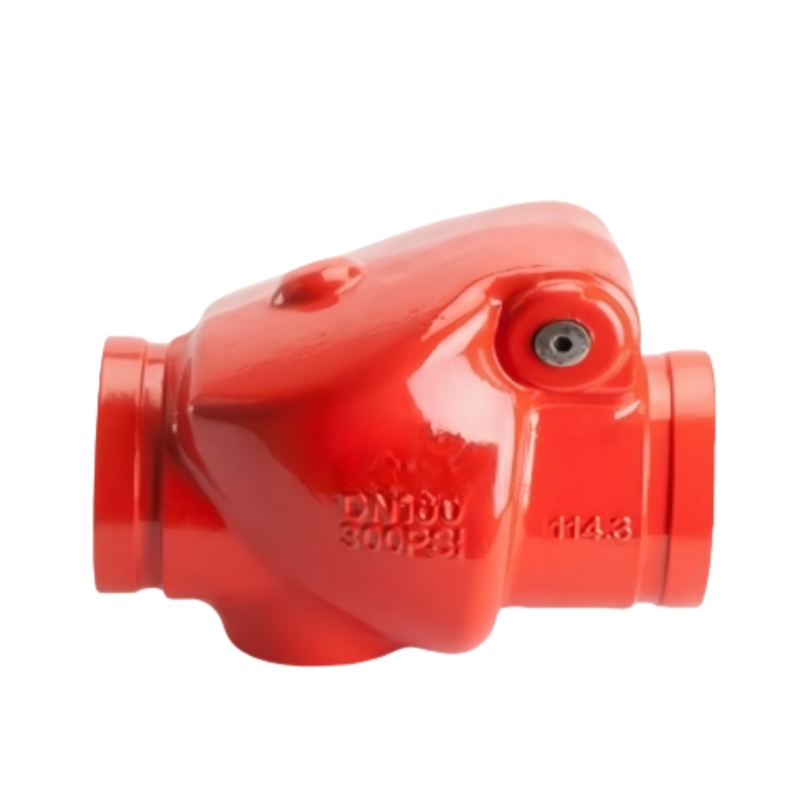

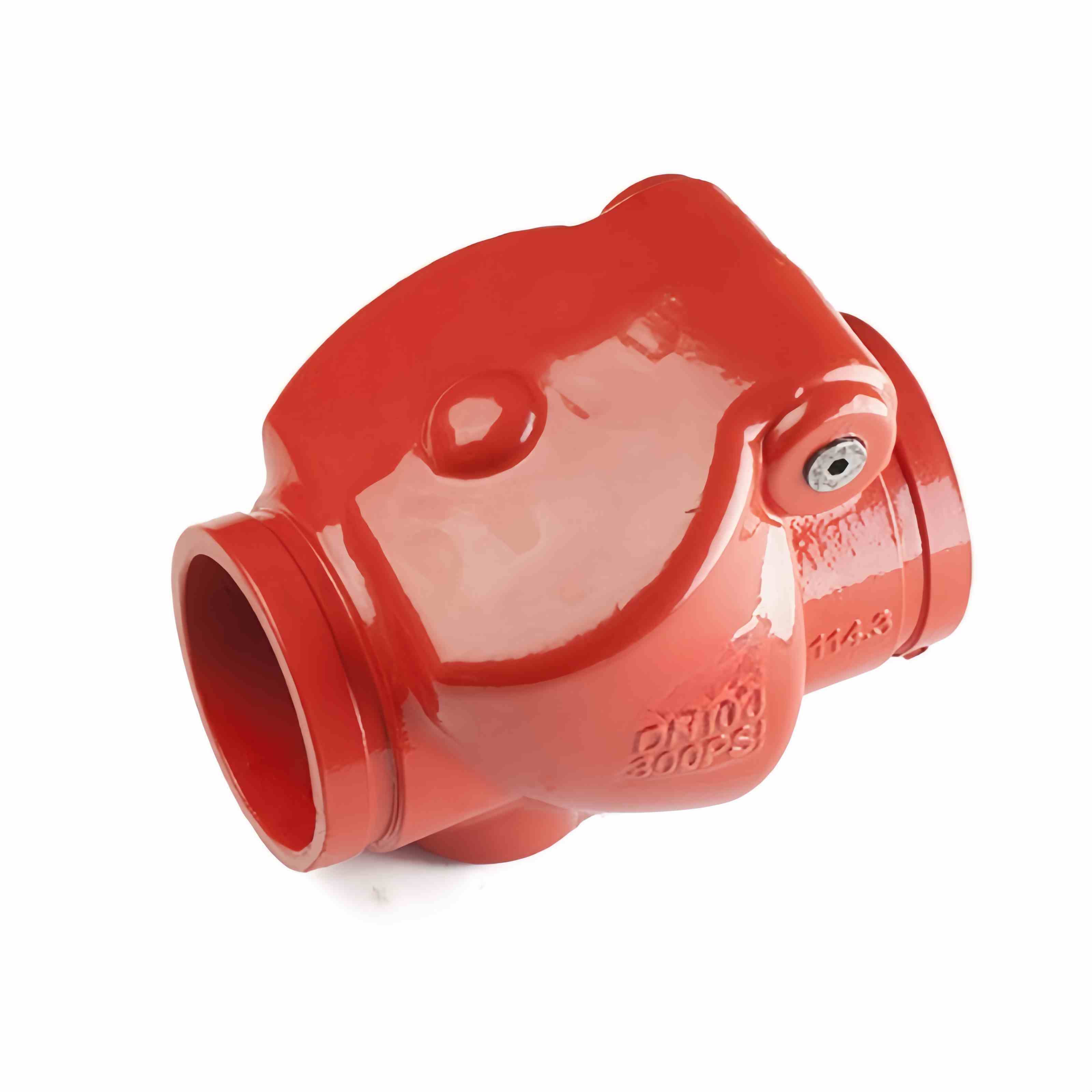

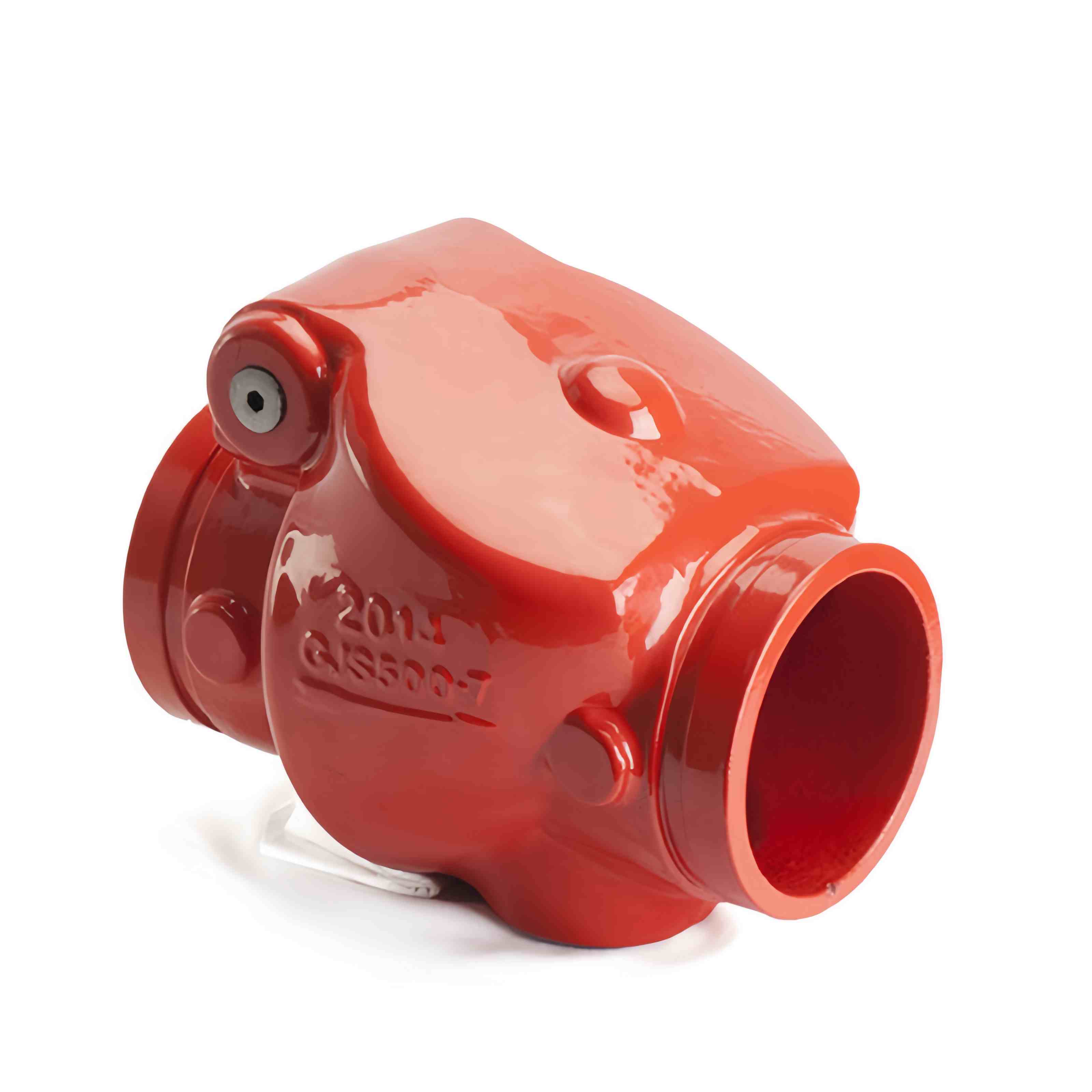

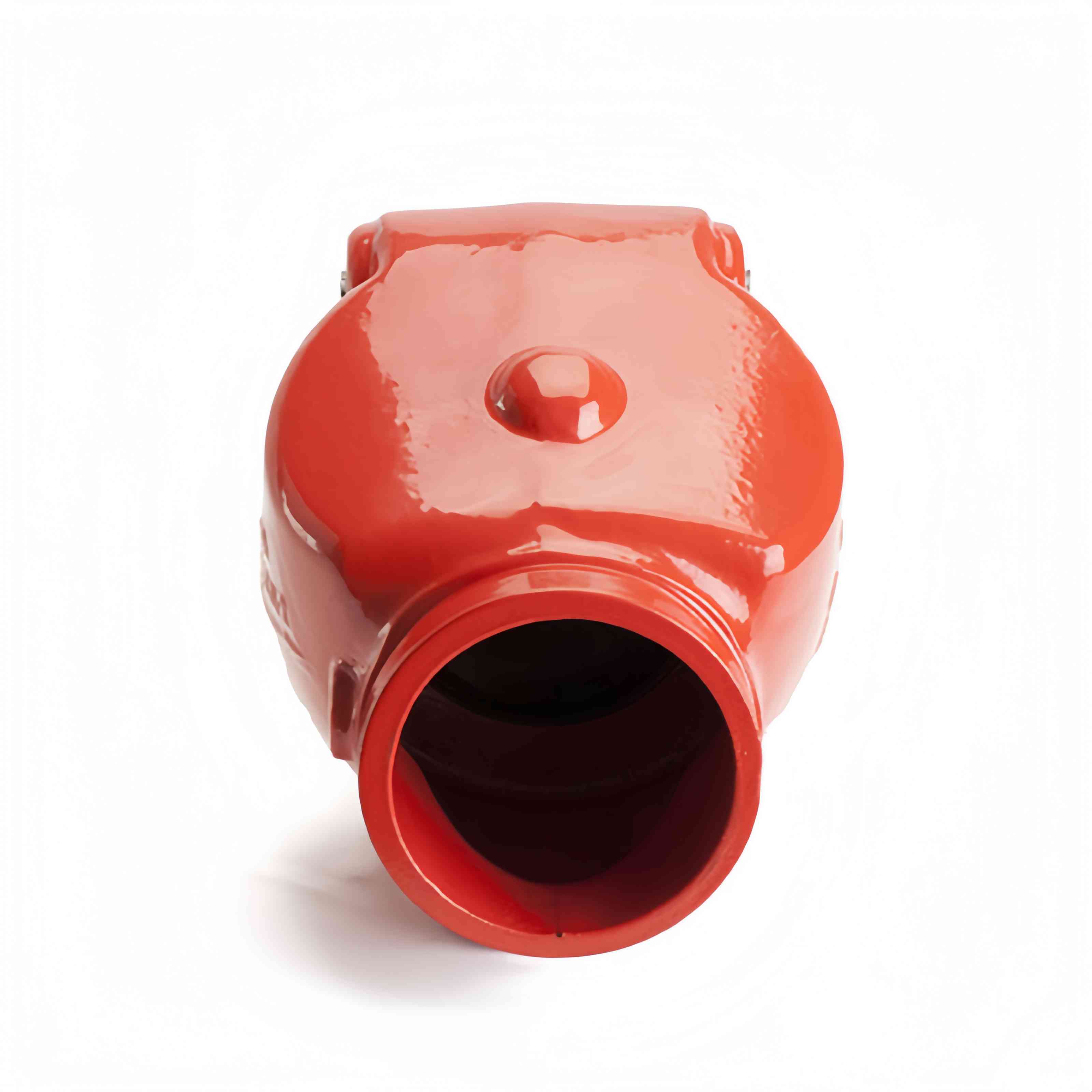

Grooved End Swing Check Valve

Grooved End Swing Check Valve is a self-acting valve designed to prevent reverse flow (backflow) in a pipeline, while featuring grooved ends for rapid installation and maintenance.

Bahan :
Ductile iron
Diameter Normal :
2 Inch~8 Inch
Koneksi :
Grooved
Tekanan Kerja :
362 psi
Jenis :
Swing Check Valve
Aplikasi :
Fire Protection Systems etc
Jumlah pesanan minimum :
50 Pieces
Waktu Pengiriman :
15~45 Days

E-mail : jony@jyfire.com.cn

PERTANYAAN SEKARANG Ngobrol Sekarang!

Product Description

Grooved End Swing Check Valve is a critical component for modern piping systems, combining the reliability of traditional swing check mechanics with the efficiency of grooved-end connections. Designed for unidirectional flow control, this valve automatically prevents backflow to protect pumps, compressors, and other equipment while enabling rapid installation and maintenance.

Features

• Fast installation and cost savings: Groove connection does not require welding or flange butt multi-bolt fastening. The installation speed is over 70% faster than traditional methods, significantly reducing labor and time costs.

• Reliable backflow prevention: Effectively protect equipment such as water pumps from backflow impact and reverse damage.

• Low flow resistance, energy-saving and highly efficient: When the valve disc is fully open, it is suspended in the flow channel, causing very little pressure loss to the medium.

• Convenient maintenance: The groove connection makes the disassembly and replacement of the valve very simple, facilitating system maintenance.

• Automatic operation: Completely driven by fluid power, without the need for external power or manual intervention.

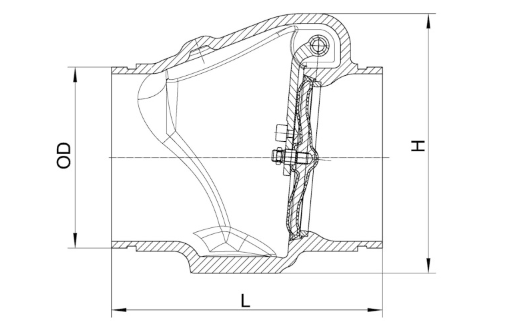

Product Parameter

Size	DN50-DN65-DN80-DN100-DN125-DN150-DN200
Working Pressure	362 psi
Temperature Range	0~80 ℃
Body Material	Ductile Iron
Standard	UL/FM

Q：Why Partner With Us?

A：We offer competitive direct pricing without middleman markups.Our products are built to UL/FM, or other relevant international standards.We provide expert technical support to ensure correct valve selection.

Q：Can OEM services be provided? For example, putting on our brand Logo?

A：Of course! As a factory, we warmly welcome OEM/ODM cooperation.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
